Which statement is correct about controlling the routes installed by a RIB group?
Answer(s): A
A RIB group is a configuration that allows a routing protocol to install routes into multiple routing tables in Junos OS. A RIB group consists of an import-rib statement, which specifies the source routing table, and an export-rib statement, which specifies the destination routing table or group. ARIB group can also include an import-policy statement, which specifies one or more policies to control which routes are imported into the destination routing table or group1. An import policy is a policy statement that defines the criteria for accepting or rejecting routes from the source routing table. An import policy can also modify the attributes of the imported routes, such as preference, metric, or community. An import policy can be applied to a RIB group by using the import-policy statement under the [edit routing-options rib-groups] hierarchy level1. Therefore, option A is correct, because an import policy is applied to the RIB group to control which routes are installed in the destination routing table or group. Option B is incorrect, because all routes in the source routing table are imported into the destination routing table or group, unless filtered by an import policy. Option C is incorrect, because a firewall filter is not used to install routes in the RIB groups; a firewall filter is used to filter packets based on various criteria. Option D is incorrect, because an export policy is not applied to the RIB group; an export policy is applied to a routing protocol to control which routes are advertised to other devices.
1: rib-groups | Junos OS | Juniper Networks

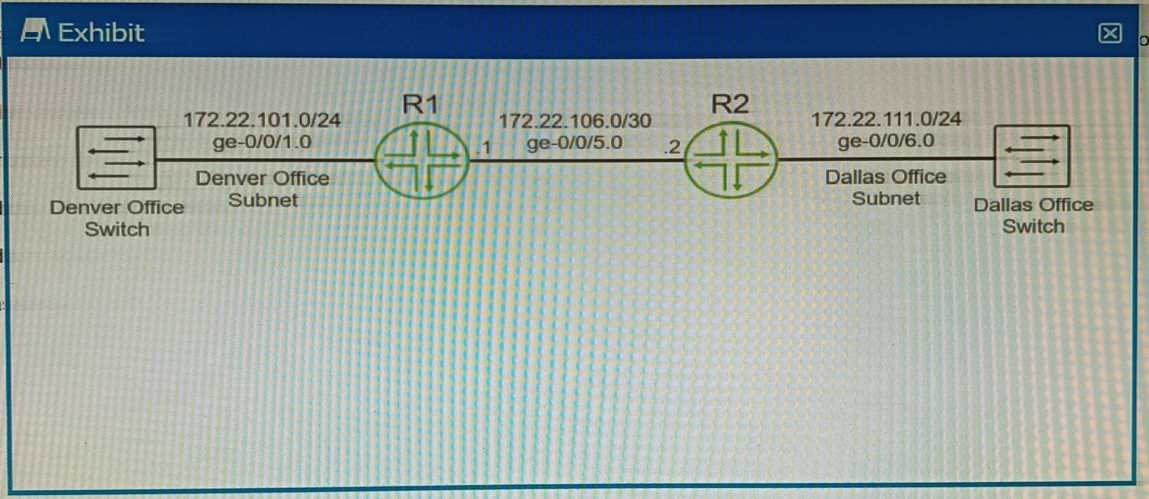

Exhibit.You are using OSPF to advertise the subnets that are used by the Denver and Dallas offices. The routers that are directly connected to the Dallas and Denver subnets are not advertising the connected subnets.Referring to the exhibit, which two statements are correct? (Choose two.)
Answer(s): C,D
The routers that are directly connected to the Dallas and Denver subnets are not advertising the connected subnets. This can be resolved by redistributing the connected subnets into OSPF1. Option C suggests to configure and apply a routing policy that redistributes the connected Dallas and Denver subnets. This is correct because redistribution allows routes from one routing protocol to be communicated to another, and in this case, it allows the connected subnets to be advertised through OSPF1.Option D suggests enabling the passive option on the OSPF interfaces that are connected to the Dallas and Denver subnets. This is also correct because in OSPF, a passive interface is an interface that belongs to the OSPF router, but does not send OSPF Hello packets1. It's typically used on an interface that you don't want to use for OSPF adjacencies, but you still want to advertise its IP address1. Therefore, enabling passive interface can help in advertising the Dallas and Denver subnets.

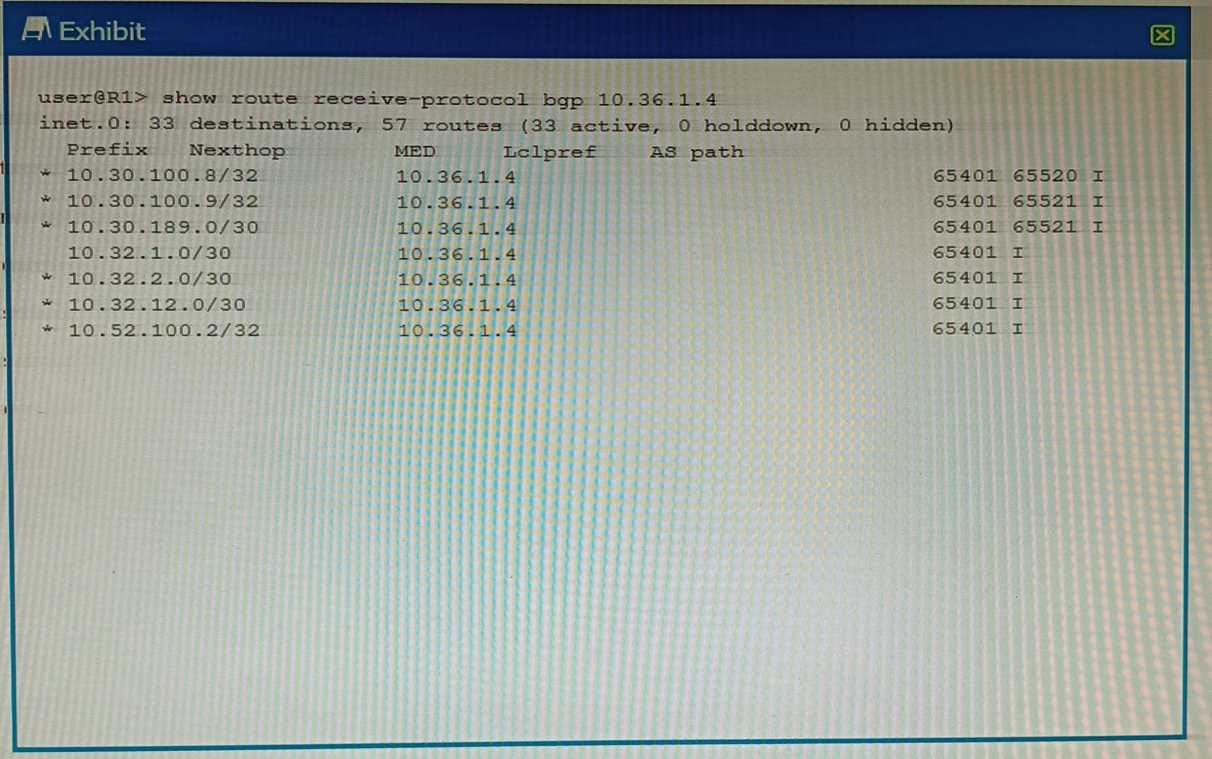

Exhibit.You want to verify prefix information being sent from 10.36.1.4.Which two statements are correct about the output shown in the exhibit? (Choose two.)
Answer(s): A,B
The output shown in the exhibit is the result of the command "show ip bgp neighbor 10.36.1.4 received-routes", which displays all received routes (both accepted and rejected) from the specified neighbor.Option A is correct, because the routes displayed have traversed one or more autonomous systems. This can be seen from the AS_PATH attribute, which shows the sequence of AS numbers that the route has passed through. For example, the route 10.0.0.0/8 has an AS_PATH of 65001 65002, which means that it has traversed AS 65001 and AS 65002 before reaching the local router. Option B is correct, because the output shows routes that were received prior to the application of any BGP import policies. This can be seen from the fact that some routes have a status code of "r", which means that they are rejected by an import policy. The "received-routes" keyword shows the routes coming from a given neighbor before the inbound policy has been applied. To see the routes after the inbound policy has been applied, the "routes" keyword should be used instead. Option C is incorrect, because the output does not show routes that are active and rejected by an import policy. The status code of "r" means that the route is rejected by an import policy, but it does not mean that it is active. The status code of ">" means that the route is active and selected as the best path. None of the routes in the output have both ">" and "r" status codes. Option D is incorrect, because the routes displayed are not being learned from an IBGP peer. An IBGP peer is a BGP neighbor that belongs to the same AS as the local router. The output shows that the neighbor 10.36.1.4 has a remote AS of 65001, which is different from the local AS of 65002. Therefore, the neighbor is an EBGP peer, not an IBGP peer.
What is the default keepalive time for BGP?
Answer(s): B
The default keepalive time for BGP is 60 seconds1. The keepalive time is the interval at which BGP sends keepalive messages to maintain the connection with its peer1. If the keepalive message is not received within the hold time, the connection is considered lost1. By default, the hold time is three times the keepalive time, which is 180 seconds1.
Which two statements are correct about tunnels? (Choose two.)
Answer(s): B,D
A tunnel is a connection between two computer networks, in which data is sent from one network to another through an encrypted link. Tunnels are commonly used to secure data communications between two networks or to connect two networks that use different protocols. Option B is correct, because tunnel endpoints must have a valid route to the remote tunnel endpoint. A tunnel endpoint is the device that initiates or terminates a tunnel connection. For a tunnel to be established, both endpoints must be able to reach each other over the underlying network. This means that they must have a valid route to the IP address of the remote endpoint1. Option D is correct, because tunnels add additional overhead to packet size. Tunnels work by encapsulating packets: wrapping packets inside of other packets. This means that the original packet becomes the payload of the surrounding packet, and the surrounding packet has its own header and trailer. The header and trailer of the surrounding packet add extra bytes to the packet size, which is called overhead. Overhead can reduce the efficiency and performance of a network, as it consumes more bandwidth and processing power2.Option A is incorrect, because BFD can be used to monitor tunnels. BFD is a protocol that can be used to quickly detect failures in the forwarding path between two adjacent routers or switches. BFD can be integrated with various routing protocols and link aggregation protocols to provide faster convergence and fault recovery. BFD can also be used to monitor the connectivity of tunnels, such as GRE, IPsec, or MPLS.Option C is incorrect, because IP-IP tunnels are stateless. IP-IP tunnels are a type of tunnels that use IP as both the encapsulating and encapsulated protocol. IP-IP tunnels are simple and easy to configure, but they do not provide any security or authentication features. IP-IP tunnels are stateless, which means that they do not keep track of the state or status of the tunnel connection. Stateless tunnels do not require any signaling or negotiation between the endpoints, but they also do not provide any error detection or recovery mechanisms.
1: What is Tunneling? | Tunneling in Networking 2: What Is Tunnel In Networking, Its Types, And Its Benefits? : [Configuring Bidirectional Forwarding Detection] : [IP-IP Tunneling]
