Fortinet NSE7_SDW-7.0 Exam (page: 3)
Fortinet NSE 7 - SD-WAN 7.0
Updated on: 12-Feb-2026

Viewing Page 3 of 15
NSE7_SDW-7.0 PDF 70 Questions

Which two statements are correct when traffic matches the implicit SD-WAN rule? (Choose two.)

  1. The sdwan_service_id flag in the session information is 0.
  2. All SD-WAN rules have the default setting enabled.
  3. Traffic does not match any of the entries in the policy route table.
  4. Traffic is load balanced using the algorithm set for the v4-ecmp-mode setting.

Answer(s): A,C

Explanation:

sdwan_service_id is 0 = match SD-WAN implicit rule, study guide 7.0 page 120, 7.2 page 149 SD-WAN rules internally are interpreted as a Policy route, so when the traffic doesn't match with any policy route, it will be flowing by implict policy.

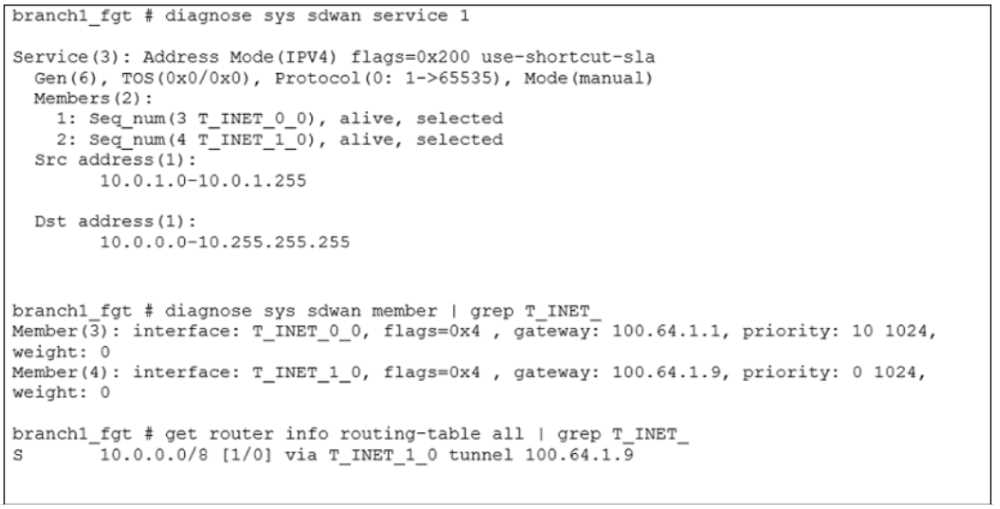

Refer to the exhibit.



An administrator is troubleshooting SD-WAN on FortiGate. A device behind branch1_fgt generates traffic to the 10.0.0.0/8 network. The administrator expects the traffic to match SD-WAN rule ID 1

and be routed over T_INET_0_0. However, the traffic is routed over T_INET_1_0. Based on the output shown in the exhibit, which two reasons can cause the observed behavior? (Choose two.)

  1. The traffic matches a regular policy route configured with T_INET_1_0 as the outgoing device.
  2. T_INET_1_0 has a lower route priority value (higher priority) than T_INET_0_0.
  3. T_INET_0_0 does not have a valid route to the destination.
  4. T_INET_1_0 has a higher member configuration priority than T_INET_0_0.

Answer(s): A,C

Explanation:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Assigning-Priority-to-SD-WAN-Members- for-Default/ta-p/230911



Refer to the exhibit.



Based on the exhibit, which two actions does FortiGate perform on sessions after a firewall policy change? (Choose two.)

  1. FortiGate flushes all sessions.
  2. FortiGate terminates the old sessions.
  3. FortiGate does not change existing sessions.
  4. FortiGate evaluates new sessions.

Answer(s): C,D

Explanation:

FortiGate not to flag existing impacted session as dirty by setting firewall-session-dirty to check new. The results is that FortiGate evaluates only new session against the new firewall policy.



Which two statements about SD-WAN central management are true? (Choose two.)

  1. The objects are saved in the ADOM common object database.
  2. It does not support meta fields.
  3. It uses templates to configure SD-WAN on managed devices.
  4. It supports normalized interfaces for SD-WAN member configuration.

Answer(s): A,C

Explanation:

Normalized interfaces are not supported for SD-WAN templates. You can create multiple SD-WAN zones and add interface members to the SD-WAN zones. You must bind the interface members by name to physical interfaces or VPN
interfaces.https://docs.fortinet.com/document/fortigate/7.0.0/sd-wan-new-features/794804/new- sd-wan-template-fmg

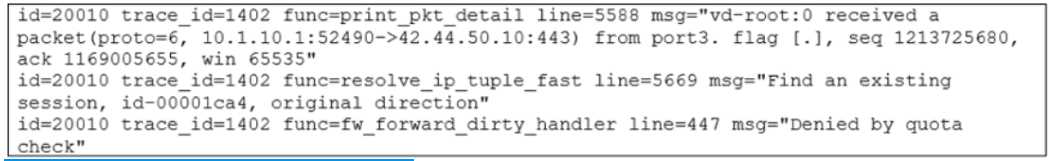

Refer to the exhibits.



Which conclusion about the packet debug flow output is correct?

  1. The total number of daily sessions for 10.1.10.1 exceeded the maximum number of concurrent sessions configured in the traffic shaper, and the packet was dropped.
  2. The packet size exceeded the outgoing interface MTU.
  3. The number of concurrent sessions for 10.1.10.1 exceeded the maximum number of concurrent sessions configured in the traffic shaper, and the packet was dropped.
  4. The number of concurrent sessions for 10.1.10.1 exceeded the maximum number of concurrent sessions configured in the firewall policy, and the packet was dropped.

Answer(s): C

Explanation:

In a Per-IP shaper configuration, if an IP address exceeds the configured concurrent session limit, the message "Denied by quota check" appears. SD-WAN 7.0 Study Guide page 287



Viewing Page 3 of 15
