NSE7_PBC-7.2 Exam Questions and Answers

QUESTION: 6

You have created a TGW route table to route traffic from your spoke VPC to the security VPC where two FortiGate devices are inspecting traffic. Your spoke VPC CIDR block is already propagated to the Transit Gateway (TGW) route table.

Which type of attachment should you use to advertise routes through BGP from the spoke VPC to the security VPC?

Connect attachment
VPC attachment
Route attachment
GRE attachment

Answer(s): B

Explanation:

A VPC attachment is the type of attachment that allows you to connect a VPC to a TGW and advertise routes through BGP. A VPC attachment creates a VPN connection between the VPC and the TGW, and enables dynamic routing with BGP. A connect attachment is used to connect a VPN or Direct Connect gateway to a TGW. A route attachment is not a valid type of attachment for TGW. A GRE attachment is used to connect a FortiGate device to a TGW using GRE tunnels.

Reference:

Creating the TGW and related resources

Configuring TGW route tables

FortiGate Public Cloud 7.2.0 - Fortinet Documentation

Updating the route table and adding an IAM policy

Reveal Solution Next Question

QUESTION: 7

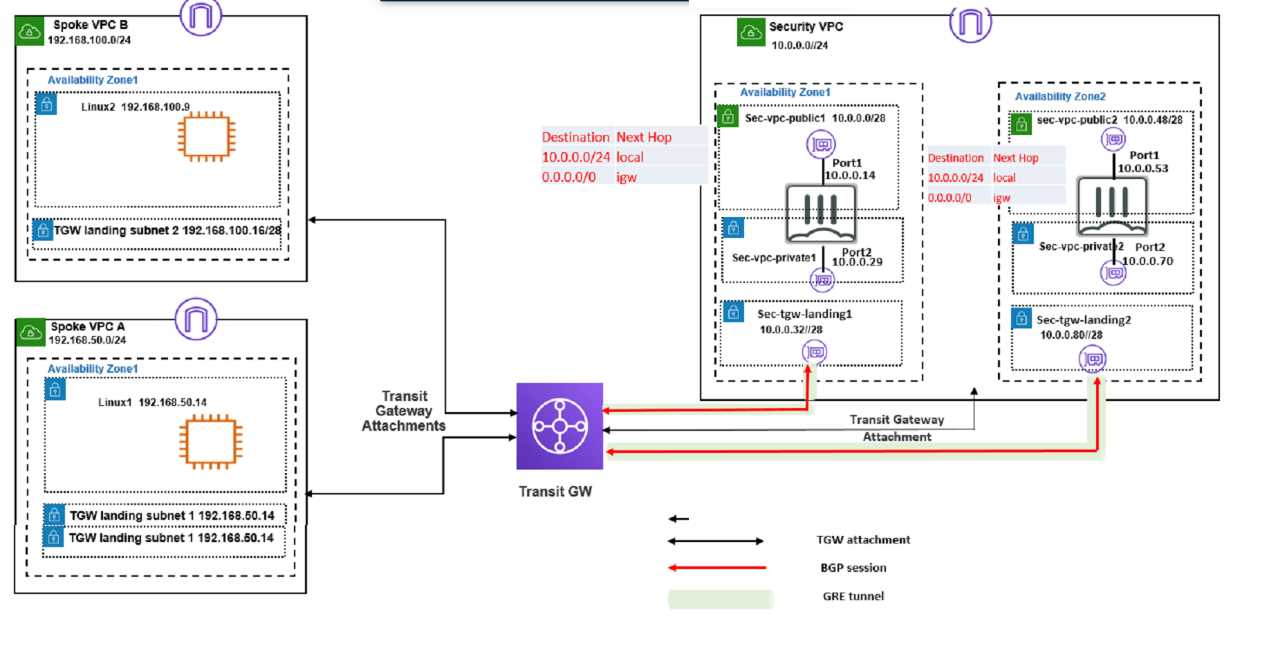

Refer to the exhibit

A customer has deployed an environment in Amazon Web Services (AWS) and is now trying to send outbound traffic from the Linux1 and Linux2 instances to the internet through the security VPC (virtual private cloud). The FortiGate policies are configured to allow all outbound traffic; however, the traffic is not reaching the FortiGate internal interface. Assume there are no issues with the Transit Gateway (TGW) configuration

Which two settings must the customer add to correct the issue? (Choose two.)

Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the Internet Gateway (IOW).
Both landing subnets in the spoke VPCs must have a 0.0 00/0 traffic route to the TGW
Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2.
The four landing subnets in all the VPCs must have a 0.0 0 0/0 traffic route to the TGW

Answer(s): B,C

Explanation:

The correct answer is B and C. Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the TGW. Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. To send outbound traffic from the Linux instances to the internet through the security VPC, you need to do the following steps:

In the main subnet routing table in the spoke VPCs, add a new route with destination 0.0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table.

In the main subnet routing table in the security VPC, add a new route with destination 0.0.0.0/0, next hop FortiGate port2. This route directs all traffic from the TGW to the FortiGate internal interface, where it can be inspected and allowed by the FortiGate policies.

The other options are incorrect because:

Adding a 0.0.0.0/0 traffic route to the Internet Gateway (IGW) in the spoke VPCs is not correct, as this would bypass the TGW and the security VPC and send all traffic directly to the internet.

Adding a 0.0.0.0/0 traffic route to the TGW in all the VPCs is not necessary, as only the spoke VPCs need to send traffic to the TGW. The security VPC needs to send traffic to the FortiGate port2.

: Transit Gateways - Amazon Virtual Private Cloud : Fortinet Documentation Library - Deploying FortiGate VMs on AWS

Reveal Solution Next Question

QUESTION: 8

Which two Amazon Web Services (AWS) features support east-west traffic inspection within the AWS cloud by the FortiGate VM? (Choose two.)

A NAT gateway with an EIP
A transit gateway with an attachment
An Internet gateway with an EIP
A transit VPC

Answer(s): B,D

Explanation:

The correct answer is B and D. A transit gateway with an attachment and a transit VPC support east- west traffic inspection within the AWS cloud by the FortiGate VM.

According to the Fortinet documentation for Public Cloud Security, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway attachment is a resource that connects a VPC or VPN to a transit gateway. By using a transit gateway with an attachment, you can route traffic from your spoke VPCs to your security VPC, where the FortiGate VM can inspect the traffic1.

A transit VPC is a VPC that serves as a global network transit center for connecting multiple VPCs, remote networks, and virtual private networks (VPNs). By using a transit VPC, you can deploy the FortiGate VM as a virtual appliance that provides network security and threat prevention for your VPCs2.

The other options are incorrect because:

A NAT gateway with an EIP is a service that enables instances in a private subnet to connect to the internet or other AWS services, but prevents the internet from initiating a connection with those instances. A NAT gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM3.

An Internet gateway with an EIP is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. An Internet gateway with an EIP does not support east-west traffic inspection within the AWS cloud by the FortiGate VM4.

1: Fortinet Documentation Library - Deploying FortiGate VMs on AWS 2: [Fortinet Documentation Library - Transit VPC on AWS] 3: [NAT Gateways - Amazon Virtual Private Cloud] 4: [Internet Gateways
- Amazon Virtual Private Cloud]

Reveal Solution Next Question

QUESTION: 9

Which statement about Transit Gateway (TGW) in Amazon Web Services (AWS) is true?

TGW can have multiple TGW route tables.
Both the TGW attachment and propagation must be in the same TGW route table
A TGW attachment can be associated with multiple TGW route tables.
The TGW default route table cannot be disabled.

Answer(s): A

Explanation:

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway route table is a set of rules that determines how traffic is routed among the attachments to the transit gateway1.

A transit gateway can have multiple route tables, and you can associate different attachments with different route tables. This allows you to control how traffic is routed between your VPCs and VPNs based on your network design and security requirements1.

The other options are incorrect because:

Both the TGW attachment and propagation must be in the same TGW route table is not true. You can associate an attachment with one route table and enable propagation from another attachment to a different route table. This allows you to separate the routing domains for your attachments1.

A TGW attachment can be associated with multiple TGW route tables is not true. You can only associate an attachment with one route table at a time. However, you can change the association at any time1.

The TGW default route table cannot be disabled is not true. You can disable the default route table by deleting all associations and propagations from it. However, you cannot delete the default route table itself1.

1: Transit Gateways - Amazon Virtual Private Cloud

Reveal Solution Next Question

QUESTION: 10

You are asked to find a solution to replace the existing VPC peering topology to have a higher bandwidth connection from Amazon Web Services (AWS) to the on-premises data center Which two solutions will satisfy the requirement? (Choose two.)

Use ECMP and VPN to achieve higher bandwidth.
Use transit VPC to build multiple VPC connections to the on-premises data center
Use a transit VPC with hub and spoke topology to create multiple VPN connections to the on- premises data center.
Use the transit gateway attachment With VPN option to create multiple VPN connections to the on-premises data center

Answer(s): C,D

Explanation:

The correct answer is C and D. Use a transit VPC with hub and spoke topology to create multiple VPN connections to the on-premises data center. Use the transit gateway attachment with VPN option to create multiple VPN connections to the on-premises data center.

According to the Fortinet documentation for Public Cloud Security, a transit VPC is a VPC that serves as a global network transit center for connecting multiple VPCs, remote networks, and virtual private networks (VPNs). A transit VPC can use a hub and spoke topology to create multiple VPN connections to the on-premises data center, using the FortiGate VM as a virtual appliance that provides network security and threat prevention. A transit VPC can also leverage Equal-Cost Multi-Path (ECMP) routing to achieve higher bandwidth and load balancing across multiple VPN tunnels1.

A transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway attachment is a resource that connects a VPC or VPN to a transit gateway. You can use the transit gateway attachment with VPN option to create multiple VPN connections to the on-premises data center, using the FortiGate VM as a virtual appliance that provides network security and threat prevention. A transit gateway attachment with VPN option can also leverage ECMP routing to achieve higher bandwidth and load balancing across multiple VPN tunnels2.

The other options are incorrect because:

Using ECMP and VPN to achieve higher bandwidth is not a complete solution, as it does not specify how to replace the existing VPC peering topology or how to connect the AWS VPCs to the on- premises data center.

Using transit VPC to build multiple VPC connections to the on-premises data center is not a correct solution, as it does not specify how to use a hub and spoke topology or how to leverage ECMP routing for higher bandwidth.

1: Fortinet Documentation Library - Transit VPC on AWS 2: Fortinet Documentation Library - Deploying FortiGate VMs on AWS

Reveal Solution Next Question
