QUESTION: 6

An administrator has configured an SSID in bridge mode for corporate employees All APs are online and provisioned using default AP profiles Employees are unable to locate the SSID to conned Which two configurations can the administrator verify? (Choose two)

Verify that the broadcast SSID option is enabled in the SSID configuration
Verify that the Block Intra-SSID Traffic (intra-vap-privacy) option in the SSID configuration is disabled
Verify that the SSID to an AP group that should be broadcasting the SSID is applied
Verify that the SSID is manually applied on AP profiles for both 2 4 GHz and 5 GHz radios

Answer(s): A,D

Explanation:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-enable-and-disable-broadcast- of-SSID/ta-p/191840

Reveal Solution Next Question

QUESTION: 7

What is the purpose of enabling Windows Active Directory Domain Authentication on FortiAuthenticator?

It enables FortiAuthenticator to use Windows administrator credentials to perform an LDAP lookup for a user search
It enables FortiAuthenticator to use a Windows CA certificate when authenticating RADIUS users
It enables FortiAuthenticator to import users from Windows AD
It enables FortiAuthenticator to register itself as a Windows trusted device to proxy authentication using Kerberos

Answer(s): D

Explanation:

According to the FortiAuthenticator Administration Guide2, "Windows Active Directory domain authentication enables FortiAuthenticator to join a Windows Active Directory domain as a machine entity and proxy authentication requests using Kerberos." Therefore, option D is true because it describes the purpose of enabling Windows Active Directory domain authentication on FortiAuthenticator. Option A is false because FortiAuthenticator does not need Windows administrator credentials to perform an LDAP lookup for a user search. Option B is false because FortiAuthenticator does not use a Windows CA certificate when authenticating RADIUS users, but rather its own CA certificate. Option C is false because FortiAuthenticator does not import users from Windows AD, but rather synchronizes them using LDAP or FSSO.

Reveal Solution Next Question

QUESTION: 8

Refer to the exhibits.

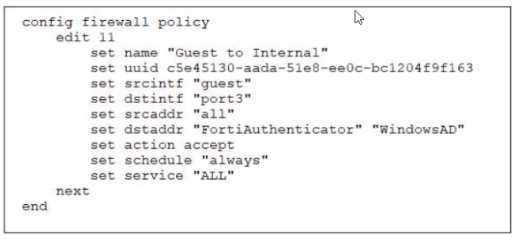

Firewall Policy

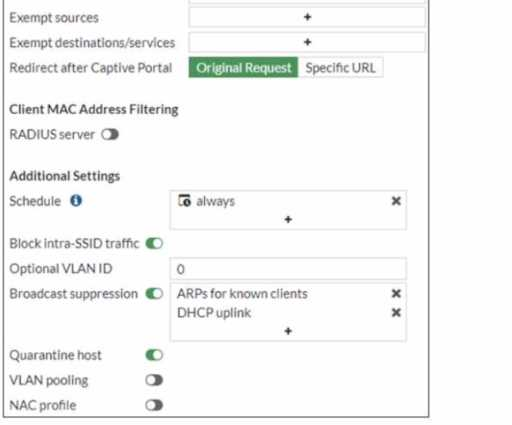

Examine the firewall policy configuration and SSID settings An administrator has configured a guest wireless network on FortiGate using the external captive portal The administrator has verified that the external captive portal URL is correct However wireless users are not able to see the captive portal login page Given the configuration shown in the exhibit and the SSID settings which configuration change should the administrator make to fix the problem?

Disable the user group from the SSID configuration
Enable the captivs-portal-exempt option in the firewall policy with the ID 11.
Apply a guest.portal user group in the firewall policy with the ID 11.
Include the wireless client subnet range in the Exempt Source section

Answer(s): C

Explanation:

According to the FortiGate Administration Guide, "To use an external captive portal, you must configure a user group that uses the external captive portal as the authentication method and apply it to a firewall policy." Therefore, option C is true because it will allow the wireless users to be redirected to the external captive portal URL when they try to access the Internet. Option A is false because disabling the user group from the SSID configuration will prevent the wireless users from being authenticated by the FortiGate device. Option B is false because enabling the captive-portal- exempt option in the firewall policy will bypass the captive portal authentication for the wireless users, which is not the desired outcome. Option D is false because including the wireless client subnet range in the Exempt Source section will also bypass the captive portal authentication for the wireless users, which is not the desired outcome.

Reveal Solution Next Question

QUESTION: 9

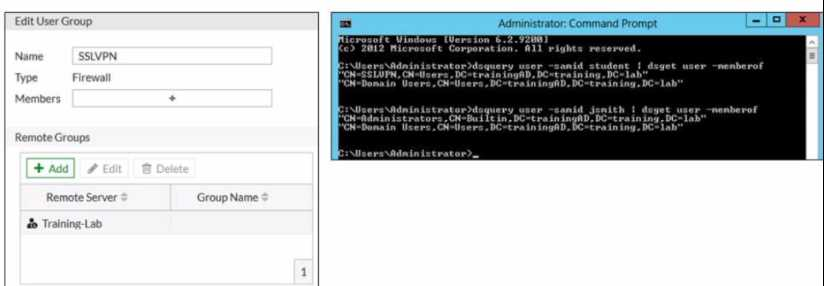

Refer to the exhibit.

Examine the FortiGate user group configuration and the Windows AD LDAP group membership information shown in the exhibit
FortiGate is configured to authenticate SSL VPN users against Windows AD using LDAP The administrator configured the SSL VPN user group for SSL VPN users However the administrator noticed that both the student and j smith users can connect to SSL VPN

Which change can the administrator make on FortiGate to restrict the SSL VPN service to the student user only?

In the SSL VPN user group configuration set Group Nam© to CN-SSLVPN, CN="users, DC- trainingAD, DC-training, DC-lab
In the SSL VPN user group configuration, change Name to cn=sslvpn, CN=users, DC=trainingAD, Detraining, DC-lab.
In the SSL VPN user group configuration set Group Name to ::;=Domain users.CN- Users/DC=trainingAD, DC-training, DC=lab.
In the SSL VPN user group configuration change Type to Fortinet Single Sign-On (FSSO)

Answer(s): A

Explanation:

According to the FortiGate Administration Guide, "The Group Name is the name of the LDAP group that you want to use for authentication. The name must match exactly the name of the LDAP group on the LDAP server." Therefore, option A is true because it will set the Group Name to match the LDAP group that contains only the student user. Option B is false because changing the Name will not affect the authentication process, as it is only a local identifier for the user group on FortiGate. Option C is false because setting the Group Name to Domain Users will include all users in the domain, not just the student user. Option D is false because changing the Type to FSSO will require a different configuration method and will not solve the problem.

Reveal Solution Next Question

QUESTION: 10

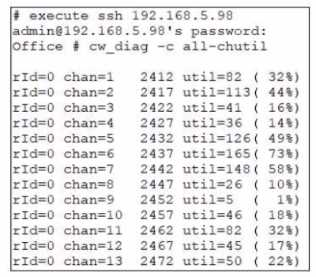

Refer to the exhibits.

Exhibit.

Examine the troubleshooting outputs shown in the exhibits Users have been reporting issues with the speed of their wireless connection in a particular part of the wireless network The interface that is having issues is the 2 4 GHz interface that is currently configured on channel 6

The administrator of the wireless network has investigated and surveyed the local RF environment using the tools available at the AP and FortiGate
Which configuration would improve the wireless connection?

Change the AP 2.4 GHz channel to 11
Change the AP 2.4 GHz channel to 1.
Change the AP 2.4 GHz channel to 9.
Change the AP 2.4 GHz channel to 13.

Answer(s): B

Explanation:

According to the exhibits, the AP 2.4 GHz interface is currently configured on channel 6, which is overlapping with other nearby APs on channels 4 and 8. This can cause interference and reduce the wireless performance. Therefore, changing the AP 2.4 GHz channel to 1 would improve the wireless connection, as it would avoid the overlapping channels and use a non-overlapping channel instead. Option A is false because changing the AP 2.4 GHz channel to 11 would still overlap with other nearby APs on channels 9 and 13. Option C is false because changing the AP 2.4 GHz channel to 9 would still overlap with other nearby APs on channels 6, 8, and 11. Option D is false because changing the AP 2.4 GHz channel to 13 would still overlap with other nearby APs on channels 9 and 11.

Reveal Solution Next Question
