Explanation:

According to the SD-WAN 7.6 Core Administrator study guide and the FortiOS 7.6 Administration Guide, for the FortiGate SD-WAN engine to successfully steer traffic using SD-WAN rules, three fundamental configuration components must be in place. This is because the SD-WAN rule lookup occurs only after certain initial conditions are met in the packet flow:

Interfaces (Option C): You must first define the physical or logical interfaces (such as ISP links, LTE, or VPN tunnels) as SD-WAN members. These members are then typically grouped into SD-WAN Zones. Without designated member interfaces, there is no "pool" of links for the SD-WAN rules to select from.

Routing (Option D): For a packet to even be considered by the SD-WAN engine, there must be a matching route in the Forwarding Information Base (FIB). Usually, this is a static route where the destination is the network you want to reach, and the gateway interface is set to the SD-WAN virtual interface (or a specific SD-WAN zone). If there is no route pointing to SD-WAN, the FortiGate will use other routing table entries (like a standard static route) and bypass the SD-WAN rule-based steering logic entirely.

Firewall Policies (Option A): In FortiOS, no traffic is allowed to pass through the device unless a Firewall Policy permits it. To steer traffic, you must have a policy where the Incoming Interface is the internal network and the Outgoing Interface is the SD-WAN zone (or the virtual-wan-link). The SD- WAN rule selection happens during the "Dirty" session state, which requires a policy match to proceed with the session creation.

Why other options are incorrect:

Security Profiles (Option B): While mandatory for Application-level steering (to identify L7 signatures), basic SD-WAN steering based on IP addresses, ports, or ISDB objects does not require security profiles to be active.

Traffic Shaping (Option E): This is an optimization feature used to manage bandwidth once steering is already determined; it is not a prerequisite for the steering engine itself to function.

Explanation:

According to the FortiSASE 7.6 Feature Administration Guide and the latest updates to the NSE 5 SASE curriculum, FortiSASE has introduced native lifecycle management for FortiClient agents to reduce the operational burden on IT teams who previously relied solely on third-party MDM (Mobile Device Management) or GPO (Group Policy Objects) for every update.

The Endpoint Upgrade feature, found under System > Endpoint Upgrade in the FortiSASE portal, allows administrators to perform the following:

Centralized Version Control: Administrators can see which versions are currently deployed and which "Recommended" versions are available from FortiGuard.

Scheduled Rollouts: You can choose to upgrade all endpoints or specific endpoint groups at a designated time, ensuring that upgrades do not disrupt business operations.

Status Monitoring: The portal provides a real-time dashboard showing the progress of the upgrade (e.g., Downloading, Installing, Reboot Pending, or Success).

Manual vs. Managed: While MDM is still highly recommended for the initial onboarding (the first time FortiClient is installed and connected to the SASE cloud), all subsequent upgrades can be handled natively by the FortiSASE portal.

Why other options are incorrect:

Option B: Manual upgrades are inefficient for large-scale deployments (~400 users in this scenario) and are not the intended "feature-rich" solution provided by FortiSASE.

Option C: "Onboarding" refers to the initial setup. Re-onboarding every time a version changes would be redundant and counterproductive.

Option D: While the system can manage the upgrade, it is not "auto-upgraded on demand" by the client itself without administrative configuration in the portal. The administrator must still define the target version and schedule.

Explanation:

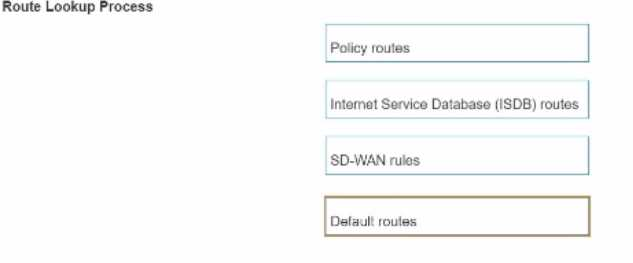

"If a flow is identified as belonging to a defined application category (such as social media), FortiGate will match it to the corresponding service rule (rule 2) and route it through the specified interface, such as port2. However, if the application is not recognized during the session setup, the system defaults to load balancing the traffic using the available tunnels according to the policy for unclassified traffic, ensuring continuous connectivity while waiting for application classification." This guarantees both performance and resilience.

Explanation:

In the SD-WAN 7.6 Core Administrator curriculum, the "Prefer Passive" probe mode is a hybrid monitoring strategy designed to minimize the overhead of synthetic traffic (probes) while maintaining link health visibility. According to the FortiOS 7.6 Administration Guide and the SD-WAN Study Guide, the behavior and impacts are as follows:

TCP Traffic Requirement (Option E): Passive monitoring relies on the FortiGate's ability to inspect actual user traffic to calculate health metrics such as Latency, Jitter, and Packet Loss. Specifically, it uses TCP traffic (by analyzing TCP sequence numbers and timestamps to calculate Round Trip Time - RTT). If user traffic is flowing through the member interface, the FortiGate uses those real-world sessions for SLA calculations instead of sending its own probes.

Inability to Detect Dead Members (Option C): A significant limitation of passive monitoring is that it cannot distinguish between a "dead" link and an "idle" link. If there is no traffic, the passive monitor has no data to analyze. Consequently, while in passive mode, the SD-WAN engine cannot detect a dead member. To mitigate this, "Prefer Passive" includes a fail-safe: if no traffic is detected for a specific period (typically 3 minutes), the FortiGate will automatically switch to Active mode (sending ICMP/TCP pings) to verify if the link is actually alive.

Why other options are incorrect:

Option A: Passive monitoring generally disables hardware offloading (ASIC) for the monitored traffic. This is because the CPU must inspect every packet header to calculate performance metrics; if the traffic were offloaded to the Network Processor (NP), the CPU would not see the packets, rendering passive monitoring impossible.

Option B: While active probes often use ICMP, passive monitoring is specifically designed for TCP traffic because the TCP protocol's ACK structure allows for accurate RTT and loss calculation without synthetic packets.

Option D: The "3-minute" timer is actually the trigger to switch from passive to active when traffic is absent, not the fallback timer to return to passive. The fallback to passive happens as soon as valid

TCP traffic is detected again.

According to the FortiSASE 7.6 Administration Guide and the FCP - FortiSASE 24/25 Administrator study materials, FortiSASE supports three primary external (remote) authentication sources to verify the identity of remote users (SIA and SPA users). These sources allow organizations to leverage their existing identity infrastructure for seamless onboarding and policy enforcement:

Security Assertion Markup Language (SAML) (Option A): This is the most common and recommended method for modern SASE deployments. FortiSASE acts as a SAML Service Provider (SP) and integrates with Identity Providers (IdP) such as Microsoft Entra ID (formerly Azure AD), Okta, or FortiAuthenticator. This enables Single Sign-On (SSO) and Multi-Factor Authentication (MFA).

Lightweight Directory Access Protocol (LDAP) (Option C): FortiSASE can connect to on-premises or cloud-based LDAP servers (such as Windows Active Directory). This allows the administrator to map existing AD groups to FortiSASE user groups for granular security policy application.

Remote Authentication Dial-in User Service (RADIUS) (Option E): RADIUS is supported for organizations that use centralized authentication servers or traditional MFA solutions (like RSA SecurID). FortiSASE can query a RADIUS server to validate user credentials before granting access to the SASE tunnel.

Why other options are incorrect:

OpenID Connect (OIDC) (Option B): While OIDC is a modern authentication protocol similar to SAML, FortiSASE's primary integration for external Identity Providers is currently standardized on SAML 2.0.

TACACS+ (Option D): Terminal Access Controller Access-Control System Plus is primarily used for administrative access (AAA) to network devices (like logging into a FortiGate CLI or FortiManager). It is not used for end-user VPN or SASE authentication in the Fortinet ecosystem.

Explanation:

According to the SD-WAN 7.6 Core Administrator study guide and FortiOS 7.6 Administration Guide, no configuration change is required to simply measure jitter.

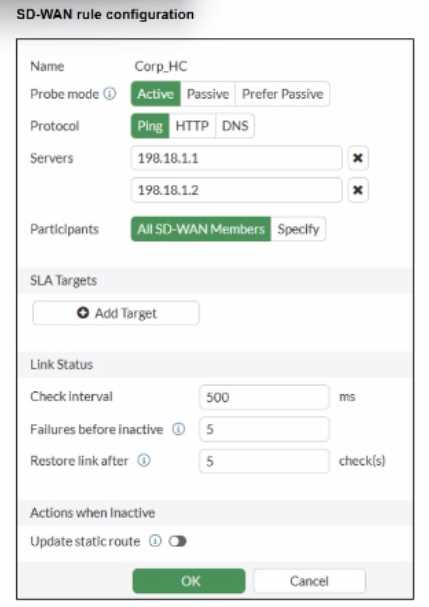

Implicit Measurement: In FortiOS, once a Performance SLA (Health Check) is configured with an Active probe mode (as seen in the exhibit with Ping selected), the FortiGate automatically begins calculating three key quality metrics for every member interface: Latency, Jitter, and Packet Loss.

Visibility: Even without an SLA Target defined, these real-time measurements are visible in the SD- WAN Monitor and via the CLI command diagnose sys virtual-wan-link health-check <SLA_Name>.

Active Probes: Because the probe mode is set to Active using the Ping protocol, the FortiGate sends synthetic packets at the defined Check interval (500ms in the exhibit). It calculates jitter by measuring the variation in the round-trip time (RTT) between these consecutive probes.

Why other options are incorrect:

Option B: Adding an SLA target and defining a jitter threshold is only necessary if you want the SD- WAN engine to make steering decisions based on that metric (e.g., "remove this link from the pool if jitter exceeds 50ms"). It is not required just to measure the jitter.

Option C: While you can specify participants, the current setting is "All SD-WAN Members," which means it is already measuring jitter for every member.

Option D: HTTP is an alternative probe protocol, but Ping (ICMP) is perfectly capable of measuring jitter and is often preferred for its lower overhead.

Explanation:

Explanation:

According to the FortiSASE 7.6 Administration Guide and the FCP - FortiSASE 24/25 training materials, FortiSASE leverages a cloud-native FortiAnalyzer instance to provide specialized reports. These reports are designed to give administrators visibility into remote user behavior, endpoint health, and cloud application usage.

The three valid and standard report types available directly within the FortiSASE portal are:

Web Usage Summary Report (Option A): This report provides a high-level overview of web activity across the SASE deployment. It categorizes traffic by website categories (e.g., Social Media, Streaming, Malicious Sites), top users by bandwidth, and blocked requests, helping IT teams understand how internet resources are being consumed by remote workers.

Vulnerability Assessment Report (Option C): Since FortiSASE integrates with FortiClient and an embedded EMS, it can aggregate vulnerability scan data from managed endpoints. This report lists software vulnerabilities found on user devices (OS-level and application-level), providing a "Security Rating" or posture assessment that is critical for Zero Trust Network Access (ZTNA) enforcement.

Shadow IT Report (Option D): Leveraging the built-in CASB (Cloud Access Security Broker) capabilities, this report identifies "unsanctioned" or "risky" SaaS applications being used by employees. It helps organizations discover hidden security risks by cataloging cloud applications that have not been explicitly approved by the IT department.

Why other options are incorrect:

Endpoint Compliance Deviation Report (Option B): While FortiSASE performs compliance checks via ZTNA tags, this specific name is not a standard "Report Type" template in the portal; compliance is typically monitored via the Endpoint Management or ZTNA Dashboards.

Cyber Threat Assessment (Option E): The Cyber Threat Assessment Program (CTAP) is a specific Fortinet sales and auditing tool used to generate a one-time report on a network's security posture (often used for FortiGate evaluations). It is not a native, recurring report type within the day-to-day FortiSASE administration interface.

Explanation:

Questions no: 9 Verified

Answer(s): B


Comprehensive and Detailed Explanation with all FortiSASE and SD-WAN 7.6 Core Administrator curriculum documents: According to the SD-WAN 7.6 Core Administrator study guide and FortiOS 7.6 Administration Guide, the behavior for deleting an SD-WAN member from the GUI when it is the only member in its zone is governed by the following operational logic:

Reference Checks: Before allowing the deletion of any SD-WAN member, FortiOS performs a "check for dependencies." If an interface is being used in an active Performance SLA or an SD-WAN Rule, the GUI will typically prevent the deletion or gray out the option until those references are removed. However, the question specifies that this member is no longer used in health-checks or rules.

Zone Integrity: Unlike some other network objects, an SD-WAN zone is permitted to exist without any members.
When you delete the final member of a user-defined zone through the GUI, the zone itself remains in the configuration as an empty container.

Route Management: When an SD-WAN member is deleted, any static routes that were specifically tied to that interface's membership in the SD-WAN bundle are automatically updated or removed by the FortiGate to prevent routing loops or "black-holing" traffic. This is part of the automated cleanup process handled by the FortiOS management plane.

GUI vs. CLI: In the GUI, the process is streamlined to allow the removal of the member interface. Once the member is deleted, the interface returns to being a "regular" system interface and can be used for standard firewall policies or other functions.

Why other options are incorrect:

Option A: There is no requirement that a zone must contain at least one member; "empty" zones are valid configuration objects in FortiOS 7.6.

Option C: While the deletion is accepted, it is not with "no further action"--the system must still reconcile the routing table and interface status.

Option D: FortiGate does not automatically move deleted members into the default zone (virtual- wan-link). Once deleted, the interface is simply no longer an SD-WAN member.
