QUESTION: 31

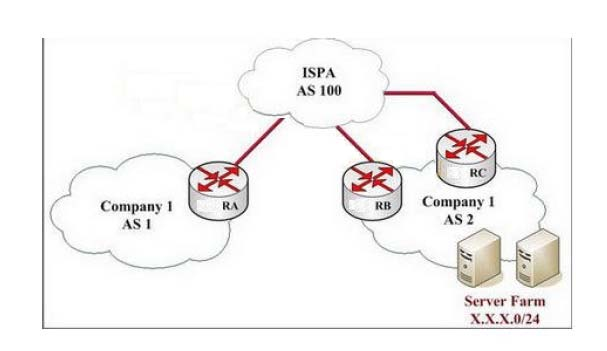

According to the following exhibit, company 1 contains two autonomous systems (AS1 and AS2) connected via ISP A, which has an AS number of 100. Router P4S-RB and Router P4S-RC are advertising an aggregate of X.X.X.0/23 so that AS1 is able to reach the two server farms. The two links from AS2 are not being used efficiently. How can AS2 use both of the links coming into it?

Create another link between Router P4S-RA in AS1 and ISP A
Configure two static routes in Router P4S-RA for X.X.X.0/23 pointing to Router P4S-RB and Router P4S-RC
Advertise each X.X.X.0/24 independently from Router P4S-RB and Router P4S-RC
Configure iBGP between Router P4S-RB and Router P4S-RC to load-share traffic once it reaches AS2

Answer(s): C

Reveal Solution Next Question

QUESTION: 32

Study the exhibit carefully. In this network, configure P4S-R1, P4S-R2, and P4S-R3 in EIGRP AS100, and configure P4S-R3 and P4S-R4 in EIGRP AS 200. P4S-R3 is configured to redistribute between the two EIGRP autonomous systems. Then, P4S-R1 loses its connection to 192.168.1.0/24. Which source will P4S-R4 receive a query from, or if it will not receive a query, why not?

P4S-R4 will not receive any queries for 192.168.1.0/24, because it's not in the same autonomous system as P4S-R1 or 192.168.1.0/24.
P4S-R4 will not receive any queries for 192.168.1.0/24. P4S-R1 will not generate any queries for this destination because there are no other paths available in the network.
P4S-R4 will receive one query for 192.168.1.0/24 from P4S-R1 itself, since P4S-R1 has lost its connection to the destination.
P4S-R4 will receive one query. Once AS100 has converged, P4S-R3 will have no route to 192.168.1.0/24, so it will initiate a query into AS 200.

Answer(s): D

Reveal Solution Next Question

QUESTION: 33

Which reason is correct about carrying routes that originate outside your network in an EGP, such as BGP, rather than in your IGP, such as OSPF, EIGRP, or IS-IS?

To provide faster convergence to destinations outside your network
To prevent failures outside your network from impacting your internal network operation
To provide a growth path for the core of your network
To provide better control over the distribution of the default route inside your network

Answer(s): B

Reveal Solution Next Question

QUESTION: 34

The network administrator would like to generate synthetic traffic using the Service Assurance Agent contained in Cisco IOS. Which Cisco Works network management application will be used to report the latency and availability for configured traffic operations on an end-to-end and hop- by-hop (router-to-router) basis?
