Cisco® 350-601 Exam (page: 18)
Cisco® Implementing and Operating Data Center Core Technologies (DCCOR)
Updated on: 01-Sep-2025

Viewing Page 18 of 106
350-601 PDF 549 Questions

The VMM domain is integrated between Cisco APICs and vCenter using a distributed vSwitch. The traffic must be blocked between a subset of endpoints in an
EPG based on specific VM attributes and the rest of the VMs in that EPG. Which set of actions blocks this traffic?

  1. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Trueג€ 2. Set Intra-EPG Isolation to ג€Unenforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Unenforcedג€ for the uSeg EPG
  2. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Falseג€ 2. Set Intra-EPG Isolation to ג€Unenforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Enforcedג€ for the uSeg EPG
  3. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Trueג€ 2. Set Intra-EPG Isolation to ג€Enforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Enforcedג€ for the uSeg EPG
  4. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to ג€Trueג€ 2. Set Intra-EPG Isolation to ג€Enforcedג€ for the EPG 3. Set Intra-EPG Isolation to ג€Unenforcedג€ for the uSeg EPG

Answer(s): A

Explanation:


Reference:

https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-743951.html



DRAG DROP (Drag and Drop is not supported)

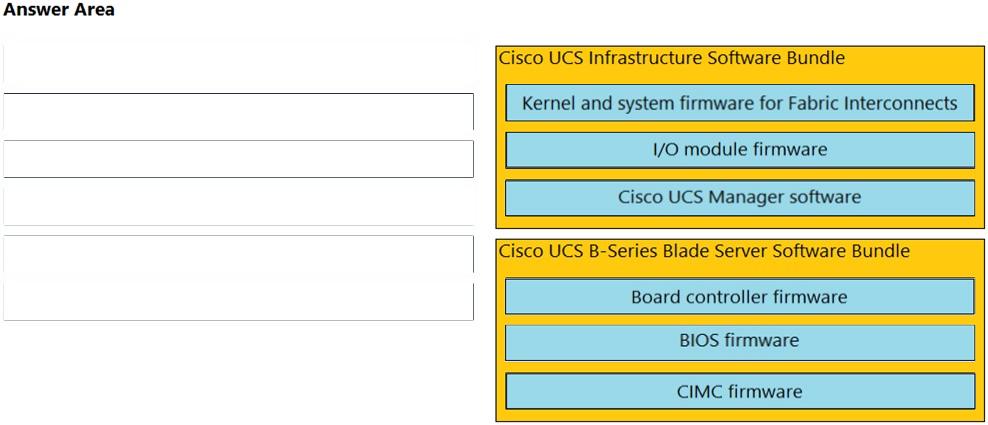

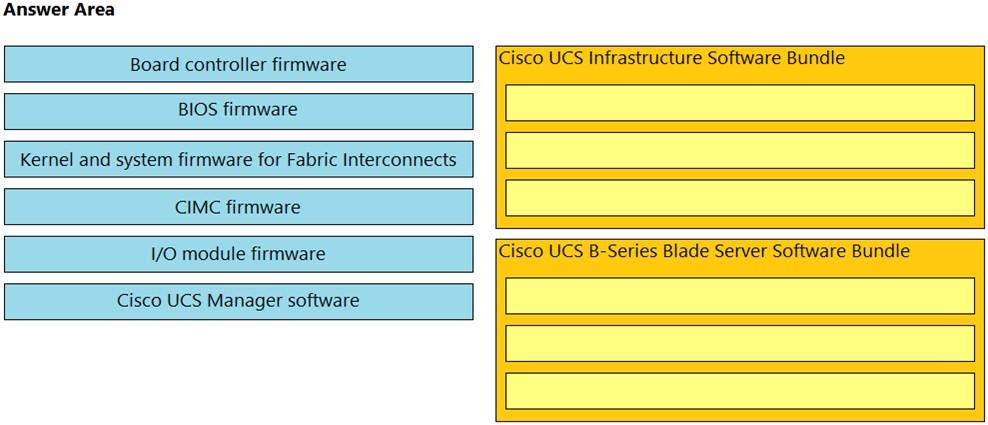

Drag and drop the firmware packages from the left onto the software bundles they belong to on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Which action must be performed before renumbering a Cisco UCS chassis?

  1. Run the shut and no shut command on the connected ports.
  2. Move the chassis to new ports on fabric interconnect.
  3. Decommission the chassis.
  4. Re-acknowledge the chassis.

Answer(s): C

Explanation:

Decommissioning is performed when a chassis is physically present and connected but you want to temporarily remove it from the Cisco UCS Manager configuration. Because it is expected that a decommissioned chassis will be eventually recommissioned, a portion of the chassis' information is retained by Cisco
UCS Manager for future use.
Renumbering a Chassis -
Before You Begin -
If you are swapping IDs between chassis, you must first decommission both chassis, then wait for the chassis decommission FSM to complete before proceeding with the renumbering steps.


Reference:

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/cli/config/guide/3-0/b_UCSM_CLI_User_Guide_3_0/ b_UCSM_CLI_User_Guide_3_0_chapter_0100011.pdf



A server engineer wants to control power usage on a Cisco UCS C-Series rack server down to the component level.
Which two components support specific power limits? (Choose two.)

  1. storage controller
  2. network controller
  3. processor
  4. graphic card
  5. memory

Answer(s): C,E

Explanation:

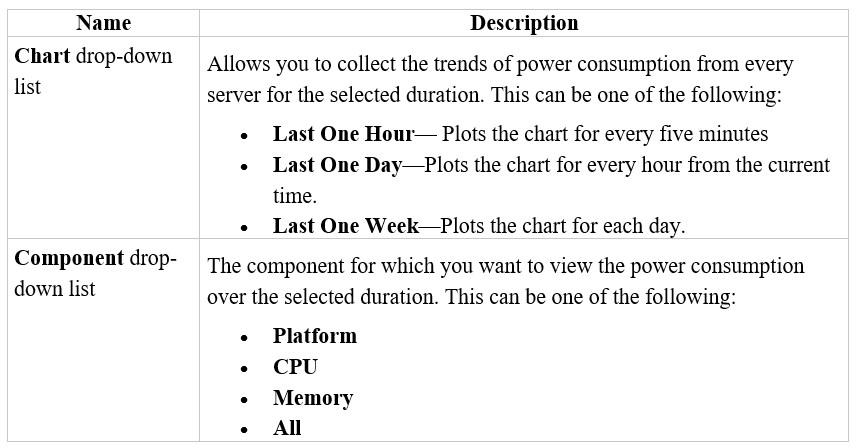

On the Power Monitoring tab, review and update the chart, component, to view the power consumption details.


Reference:

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/gui/config/guide/4_1/b_Cisco_UCS_C-series_GUI_Configuration_Guide_41/ b_Cisco_UCS_C-series_GUI_Configuration_Guide_41_chapter_0100.html



An engineer is implementing an import operation in Cisco UCS Manager.
What is the impact of performing this operation?

  1. Information is modified on the management plane only.
  2. A configuration is imported from a higher release to a lower release.
  3. It is possible to schedule an import operation.
  4. Only a configuration file that was exported from the same Cisco UCS Manager is allowed to be imported.

Answer(s): A

Explanation:

Import Configuration -
You can import any configuration file that was exported from Cisco UCS Manager. The file does not need to have been exported from the same Cisco UCS
Manager.
The import function is available for all configuration, system configuration, and logical configuration files. You can perform an import while the system is up and running. An import operation modifies information on the management plane only. Some modifications caused by an import operation, such as a change to a vNIC assigned to a server, can cause a server reboot or other operations that disrupt traffic.


Reference:

https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration_Guide_141_chapter43.html#:~:text=An
%20import%20operation%20modifies%20information,cannot%20schedule%20an%20import%20operation



Viewing Page 18 of 106
